No Designer Needed: How to Create Beautiful Reports Using Only R

.title[
# No Designer Needed: How to Create Beautiful Reports Using Only R
]
.subtitle[
## Hymans Robertson R Users Group
]
.date[
### February 15, 2023
]

---

# Hi, I'm David

---

---

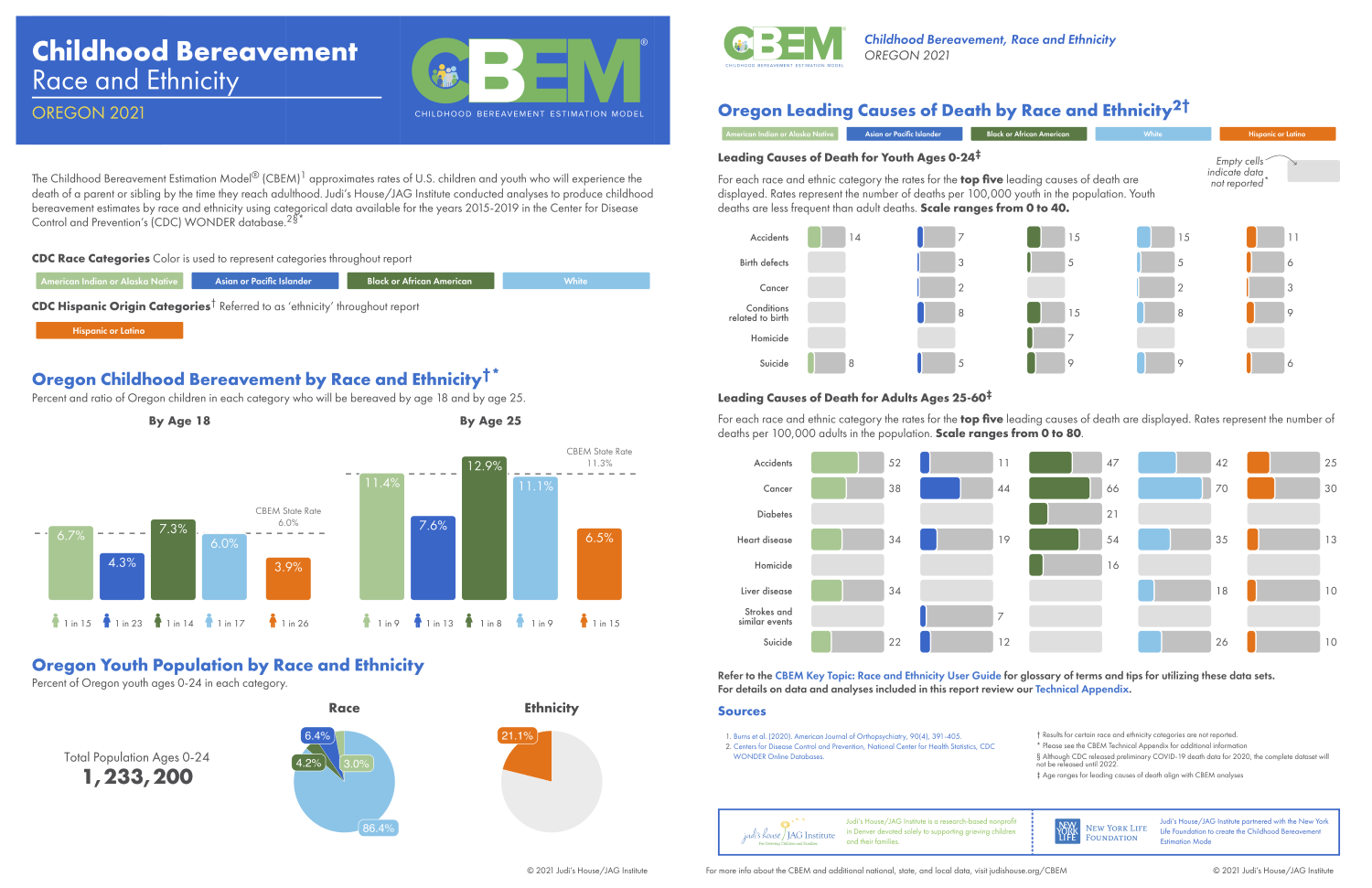

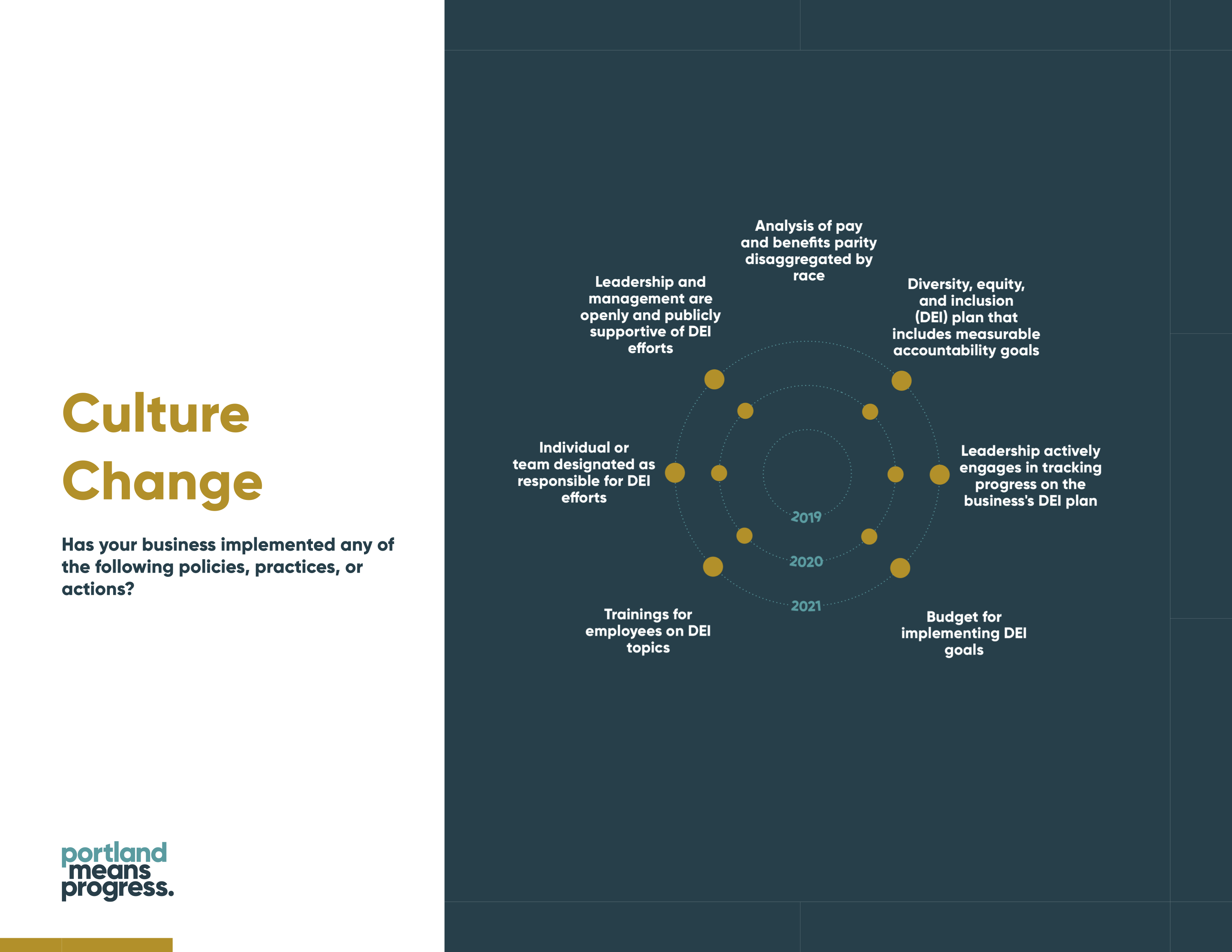

![](img/cbem-sample.png)

---

![](img/census-report-sample.png)

---

![](img/ivac-2022-sample.png)

---

![](img/pmp-single-page.png)

---

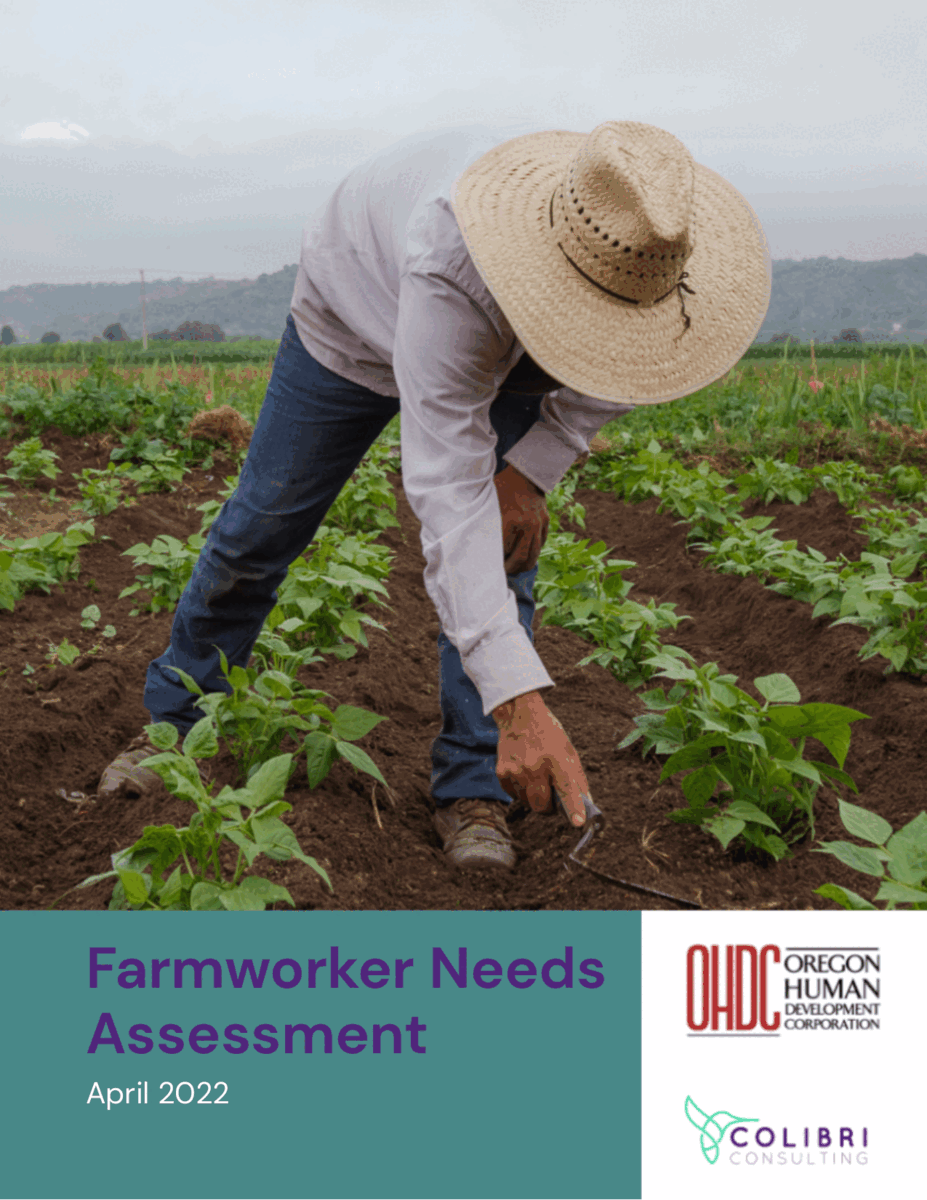

![](img/ohdc-report.gif)

---

background-image:url("img/page.jpg")

# `pagedown`

---

## The Problem

We often need to create PDF reports from RMarkdown

PDFs are portable

PDFs are widely used

---

## Potential Solution #1

Work with a graphic designer

---

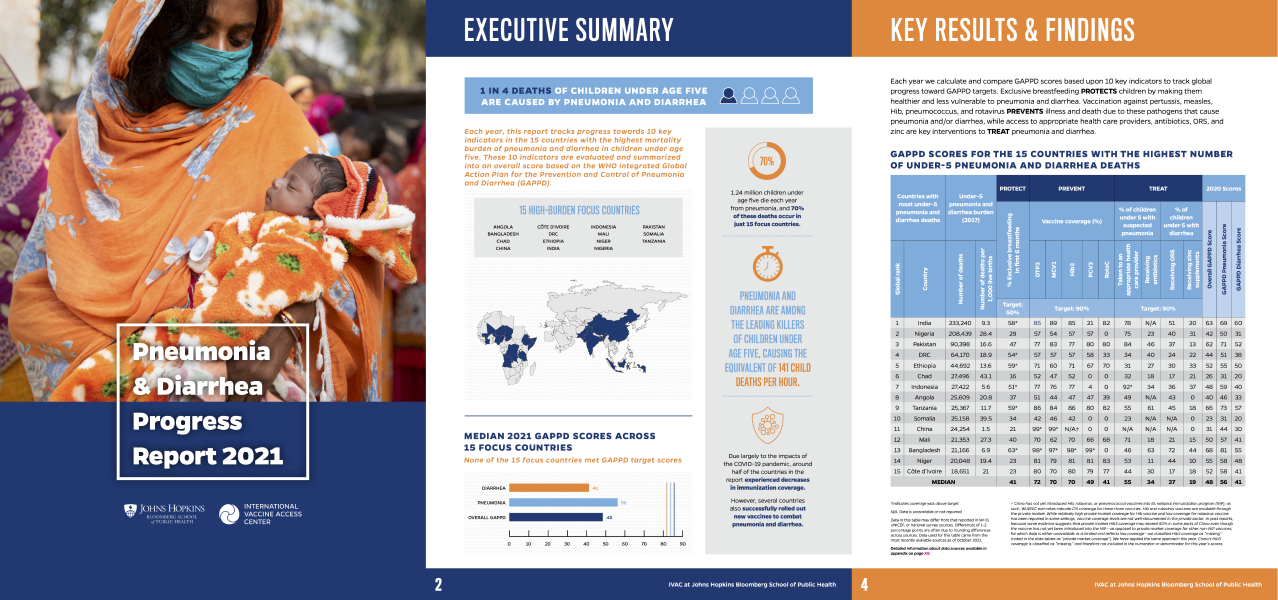

![](img/ivac-sample.png)

---

## Potential Solution #2

R users usually think of LaTex to make PDFs from RMarkdown, but there are some problems:

---

### The Default Output Looks Awful

---

### LaTeX is Terrible

---

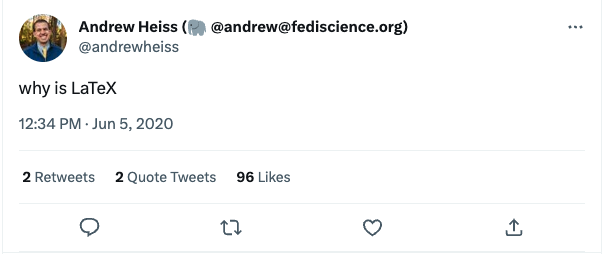

![](img/Capture-2023-02-14-140336.png)

---

![](img/Capture-2023-02-14-140501.png)

---

![](img/Capture-2023-02-14-140523.png)

---

# The Solution: `pagedown`

---

## Why `pagedown`?

You can use tools like HTML and CSS to format your documents:

+ Way easier than LaTeX to learn

+ Easier to reuse parts on a website or in other formats (like `xaringan` or `blogdown`)

+ Outputs generally looks nicer than LaTeX

---

![](img/cbem-sample.png)

---

![](img/ivac-2022-sample.png)

---

---

## How `pagedown` Works

**`pagedown`** is an R package that provides custom output formats:

+ you call it through `pagedown::html_paged` in the YAML header

+ and use the `css` argument to provide a custom style sheet

```yaml
---
  title: "My title"
date: "May 2022"
*output:
* pagedown::html_paged:
* css: "style.css"
*knit: pagedown::chrome_print
---
```

---

## Behind the Scenes

1. `pagedown` + `rmarkdown` translate the document into an **HTML** file (using Pandoc)

2. `pagedown` calls Paged.js, which puts things into the right place to look like "pages"

3. The `pagedown::chrome_print` function converts the HTML document to PDF

---

# HTML and CSS

---

## HTML and CSS

- HTML creates the bricks of your document

+ Large brick (h1, h2, h3, etc)

+ Regular text brick (p)

- CSS is what the bricks look like

+ size

+ color

+ shape

---

---

## HTML in `pagedown`

`pagedown` uses the Paged.js library, which gives us some specific ways to format our document you won't see anywhere else in the world of HTML

---

---

# Let's Make a `pagedown` Report!

---

## Install `pagedown`

```r
install.packages("pagedown")
```

---

## Create a Document

![](img/pagedown-from-template.png)

---

# Page Size

---

## Page Size

To handle pages, `pagedown` has a special CSS element called `@page`:

+ you can (and must) set its size at the beginning

```css
@page {
size: 8.5in 11in;
}
```

---

# Margins

---

## Margins

```css
:root {
--pagedjs-margin-left: 0.75in;
--pagedjs-margin-right: 0.75in;
--pagedjs-margin-bottom: 1.25in;
--pagedjs-margin-top: 1in;
}
```

---

# Fonts

---

## Fonts

```css
@import url("https://fonts.googleapis.com/css2?family=Inter:wght@400;700&display=swap");
```

---

## Fonts

```css
body {
font-family: Inter, sans-serif;
}

h1, h2, h3, h4, h5, h6 {
font-weight: 700;
}

p {
font-size: 12pt;
}
```

---

## Fonts

```css
blockquote {
margin-inline-start: 0;
color: #6cabdd;
padding-left: 10pt;
border-left: 2pt solid #6cabdd;
font-style: italic;
}
```

---

# Footer

---

---

## Footer

```css
@page {
size: 8.5in 11in;

@bottom-left-corner {
content: "";
background-image: url(rru-logo-blue.svg);
background-repeat: no-repeat;
background-size: 0.5in;
background-position: center;
}

@bottom-right-corner {
content: counter(page);
color: grey;
font-size: 10pt;
}

}
```

---

# Cover Page

---

## Cover Page

```css
@page:first{
background: linear-gradient(130deg, black, transparent),
url(dark-hex-pattern.svg);
background-repeat: no-repeat;
background-size: cover;

@bottom-left-corner {
background: none;
}

@bottom-right-corner {
content: none;
}
};
```

---

## Cover Page

```css
h1.title {
color: white;
font-size: 36pt;
}

h2.date {
color: white;
font-weight: normal;
font-size: 18pt;
page-break-after: always;
}
```

---

# Multicolumn Layouts

---

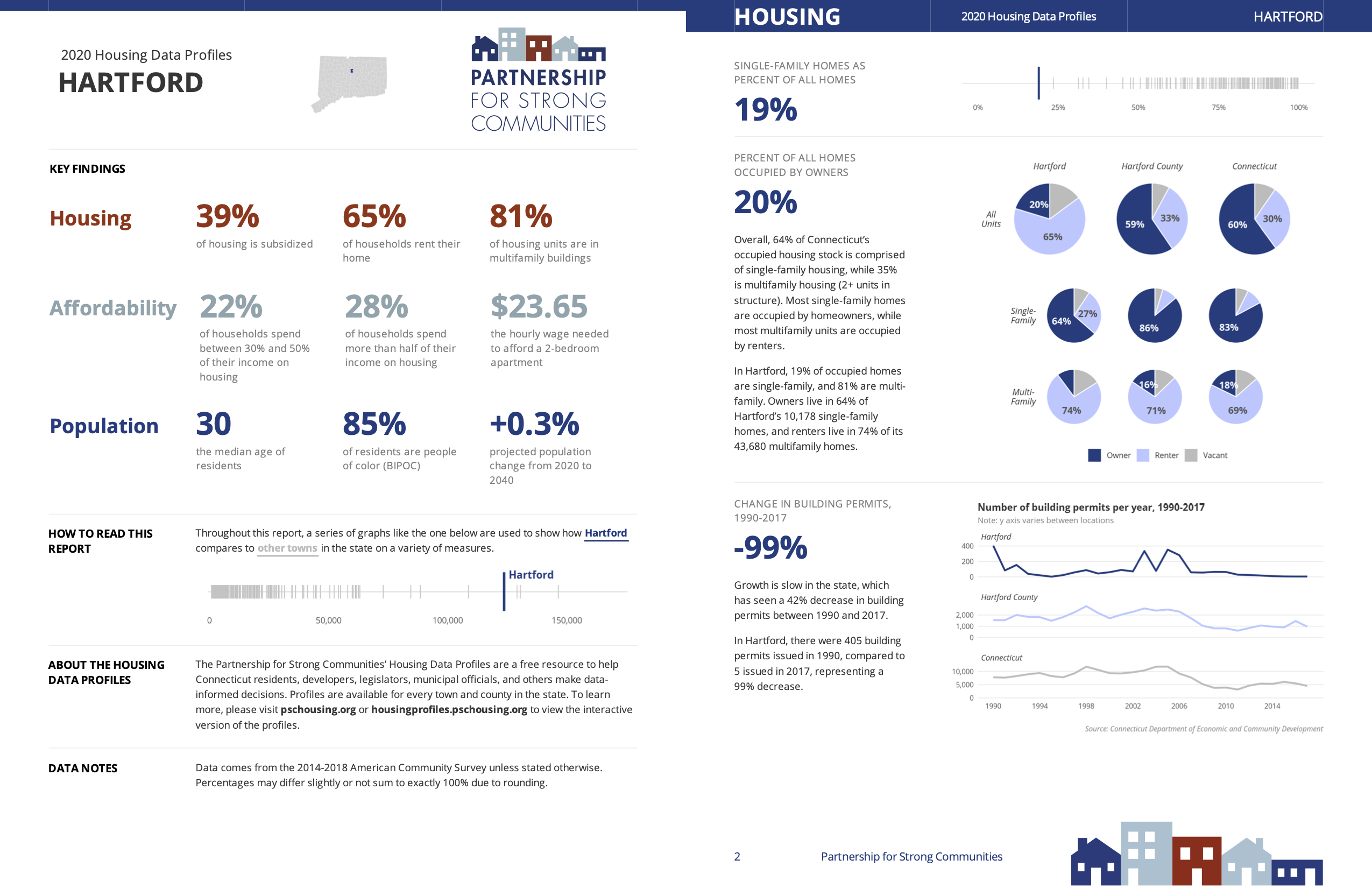

![](img/psc-sample-2-pages.png)

---

## Multicolumn Layouts

```css
img {
max-width: 100%;
}

.wrap-columns {
display: flex;
padding: 0 0pt;
}

.columns-50 {
flex: 50%;
}
```

---

# Summing Up

---

## Summing Up

- You can make nice PDFs straight from R

- You do need to know some HTML and CSS

- At least it's not LaTeX!

---

# Put Your Template in a Package

---

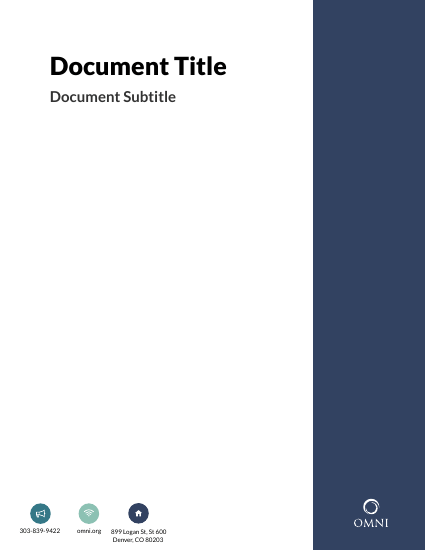

![](img/omni-report.gif)

---

# `pagedreport`

---

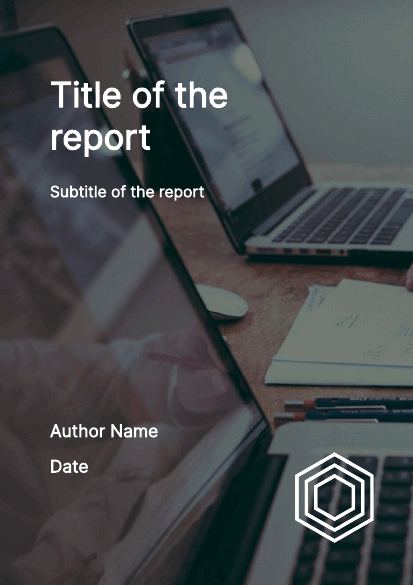

![](img/windmill.gif)

pagedreport.rfortherestofus.com

---

# Quarto?

---

![](img/quarto-2023.png)

???

https://github.com/quarto-dev/quarto-cli/discussions/1716

---

background-image:url("img/mine.jpg")

# Additional Resources

---

## Additional Resources

+ To learn more about `pagedown`, you can have a look at the [documentation](https://pagedown.rbind.io/) or the [issues](https://github.com/rstudio/pagedown/issues) on Github

+ To get a deeper knowledge of the foundations, look at the Paged.js [documentation](https://Pagedjs.org/documentation/) or their [Gitlab](https://gitlab.coko.foundation/Pagedjs/Pagedjs)

+ To learn HTML and CSS, you can either have a look at Mozilla tutorial ([HTML](https://developer.mozilla.org/en/docs/Web/HTML) + [CSS](https://developer.mozilla.org/en/docs/Web/CSS)) or the W3C tutorial ([HTML](https://www.w3schools.com/html/) + [CSS](https://www.w3schools.com/css/))
